FC Building for Air Curtains Control system FC

FC Building - Comprehensive Control System for Buildings

  • Door contact

  • Calendar function

  • Filter timer

  • Built-in temperature sensor

  • 0-10V, potential free contact or Modbus

  • Automatic air flow control (requires outdoor temp signal)

  • Automatic heat blocking (requires outdoor temp signal)

  • Heat and fan settings

  • Alarm indication

  • Read values

  • Enhanced water control possible

Easy Set-up and Operation

The system automatically detects any products or sensors that are connected to it and immediately becomes functional. If anything is removed, a notification is sent out, and the system remains operational according to the new conditions.

Optimized Energy Consumption with Door Contact

An easily installed door contact is included in all control levels. This enables the air curtain to become active only when needed and remain on stand-by when the door is closed, thus saving energy.

Enhanced Water Control

Water heat is more accurate controlled with improved water functions and modulating actuators. Automatic functions such as bypass, frost protection and return water temperature control (with sensor FCWTA) improve product functionality without any additional effort.

Made for BMS Systems

With the option to control via 0-10V, potential free contact (e.g. a relay) and/or Modbus RTU (RS485) FC Building enables you to receive product information status and alarms. Modbus allows for full use of all the energy saving features within the control system.

Comprehensive control system for buildings, with the option to control via 0-10V, potential free contact (e.g. a relay) and/or Modbus RTU (RS485). FC Building enables you to receive product information status and alarms. Modbus allows for full use of all the energy saving features within the control system.

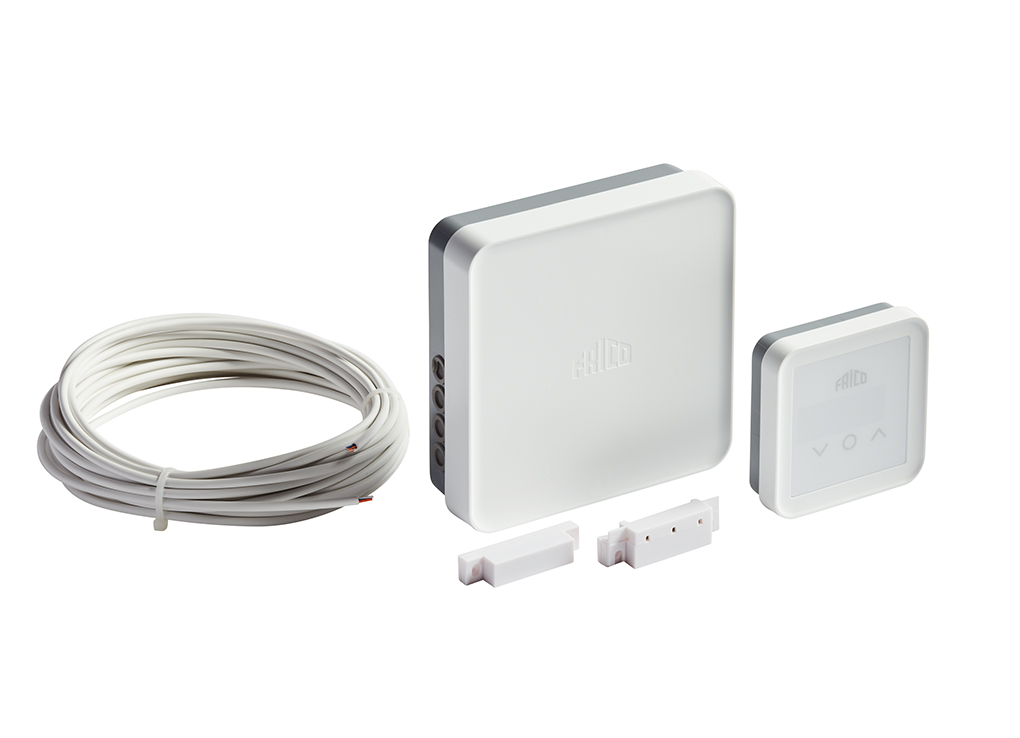

Content

  • FCCF control panel

  • FCBC10 communication cable, 10 m

  • FCDC door contact

  • FCBAP building access point

In addition to the package, components can be added to expand and customize the system, please see accessories.
