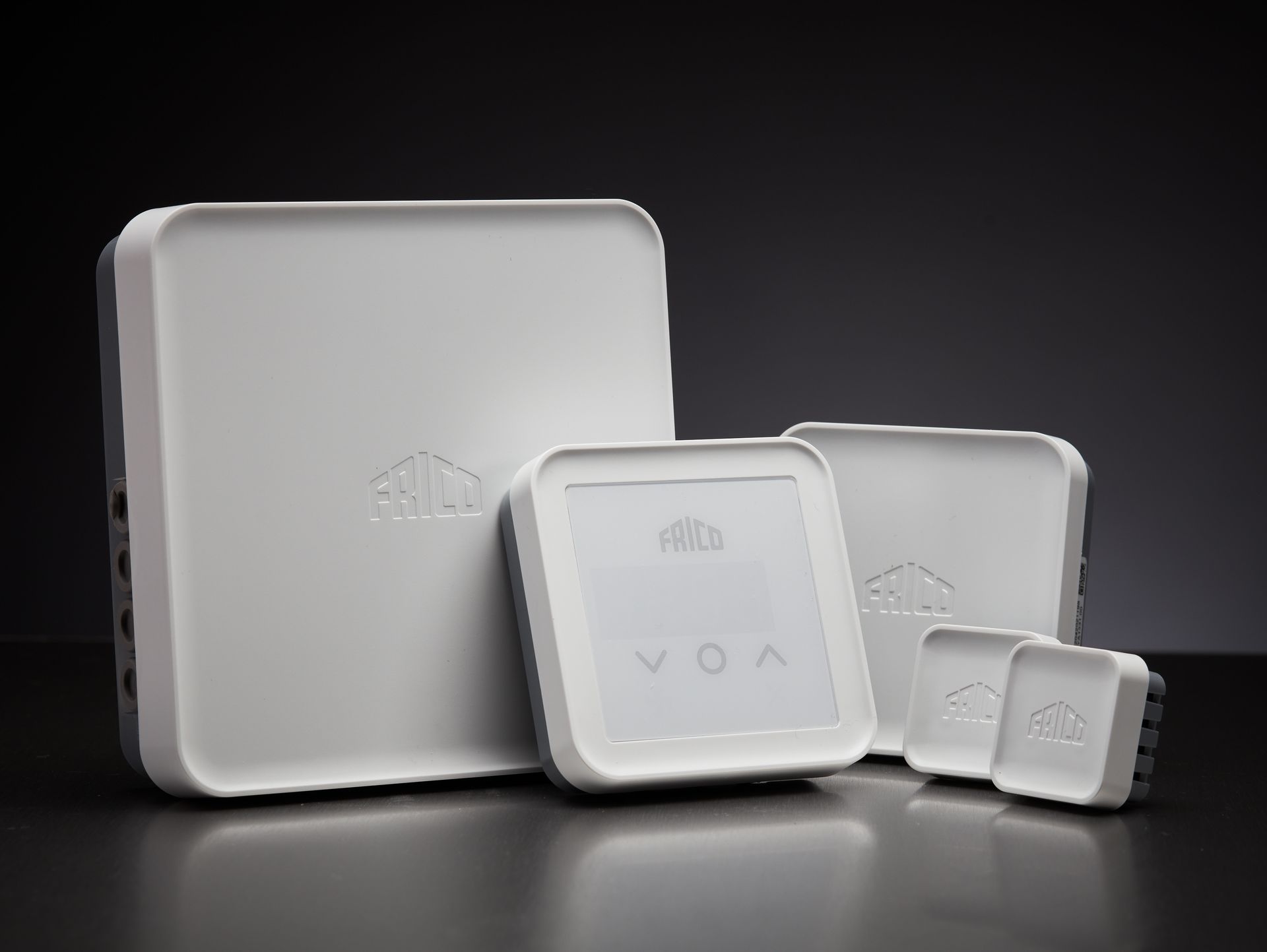

Frico Control for Fan Heaters
FC Control enables many smart and automated functions and allows you to optimize your comfort with minimum effort, customized to your specific needs. Today, different Frico product groups such as air curtains and fan heaters can be installed in the same system, with great benefits.
Customize your comfort
There are four different packages to choose from, depending on your requirements; FC Direct, FC Smart, FC Pro and FC Building. In addition to our four packages, components can be added to expand and customize the system.
)
One system, numerous possibilities
){kind=icon}
Energy savings with precise control
Included in all levels
By receiving and reacting to information about the current room temperature in addition to the fan heater's inlet and outlet temperatures, the right amount of heat is added to avoid overshoots and thus reducing energy consumption.
){kind=icon}
Automatic heat blocking
Included in FC Pro
To avoid unnecessary heating, the system automatically blocks any additional heat when the outdoor temperature reaches a given value (15°C by default).
){kind=icon}
Enhanced water control
Available with FC Smart, FC Pro or FC Building
Water heat is more accurate controlled with improved water functions and modulating actuators. Automatic functions such as frost protection and return water temperature control (with sensor FCWTA) improve product functionality without any additional effort.
){kind=icon}
Easy set-up and operation
Included in all levels
The system automatically detects any products or sensors that are connected to it and immediately becomes functional. If anything is removed, a notification is sent out, and the system remains operational according to the new conditions.
){kind=icon}
Wireless sensors offer easier installations
Accessories for FC Smart and included in FC Pro
Indoor and outdoor temperatures can be measured by wireless sensors, which allows for quicker and easier installations as no preparatory work is needed to connect cables through walls.
){kind=icon}
Create zones
Available with FC Smart or FC Pro
The zone feature allows you to create different zones for different conditions and products in a larger system, to create maximum comfort and energy savings in all areas. All zones can be controlled from the same app.
){kind=icon}
Automatic fan speed control
Included in all levels
The fan speed is automatically adjusted in auto-mode, achieving the right amount of heat with the lowest possible sound level.
){kind=icon}
Control with app
Included in FC Smart and FC Pro
The Frico app with its user-friendly interface makes it easy to set up and control products directly from your smartphone or tablet, allowing you to control your comfort with ease. The app FRICO CONTROL is available for both iOS and Android.
)
FC Direct
A great start
Entry level control system for a great start. The fan speed is automatically adjusted in auto-mode, achieving the right amount of heat with the lowest possible speed and sound level. With the calender function, you can choose periods of comfort and reduced mode. It is possible to limit the outlet temperature. The control panel has a built-in temperature sensor, which is used for control when external sensors are not used.
Entry level
Automatic fan speed control
Calendar function
Built-in temperature sensor
Outlet temperature limit
)
FC Smart
Full freedom
Second level control system for full freedom. FC Smart comes with all features from FC Direct plus additional energy saving features and the possibility of app control (Bluetooth). The app gives you access to all functions in the system, allowing you to set it up exactly the way you want it. It also enables you to create different zones with different settings in a larger system. Choose between several modes for heating only when needed, such as Away, Boost and Presence. The app FRICO CONTROL is available for both iOS and Android.
FC Direct +
Control via app (Bluetooth)
Wireless sensors possible
Adjustable calendar function
Away, Boost and Presencefunction
Zone possibility
Enhanced water control possible
)
FC Pro
Maximum savings
Third level control system for maximum savings. FC Pro comes with all features from FC Direct and FC Smart plus additional automatic energy saving features. The heat blocking function prevents unnecessary heating, using the wireless outdoor temperature sensor.
FC Direct + FC Smart +
Automatic heat blocking
)
FC Building - BMS system
Comprehensive control system for buildings
Comprehensive control system for buildings, with the option to control via 0-10V, potential free contact (e.g. a relay) and/or Modbus RTU (RS485). FC Building enables you to receive product information status and alarms. Modbus allows for full use of all the energy saving features within the control system.
FC Direct +
0-10V, potential free contact or Modbus
Automatic heat blocking*
Heat and fan settings
Alarm indication
Read values
Enhanced water control possible
* Requires outdoor temp signal
